Pres Kaynaklı Yaprak Şeritli Flexible Baralar

Product Structure

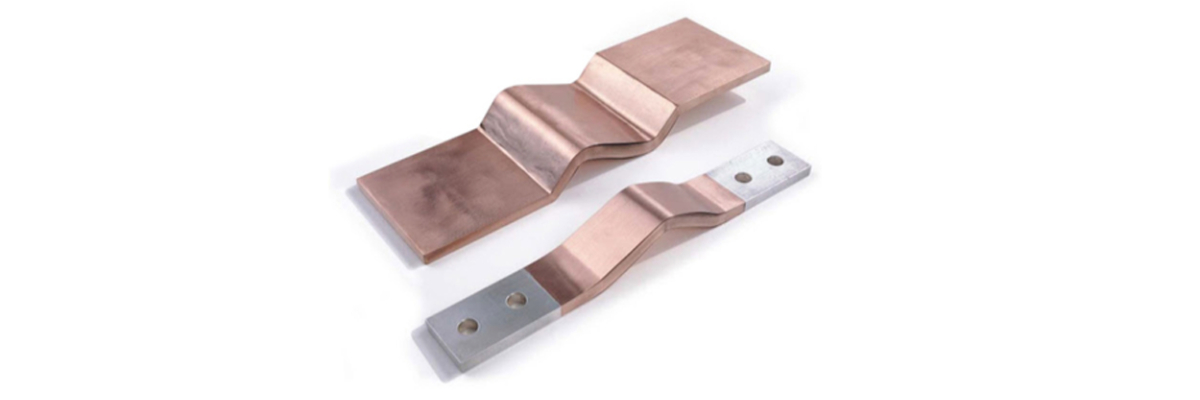

Press welded leaf strip flexible busbars are produced by placing Cu ETP strips on top of each other and welding them together under pressure. This special welding process is carried out under high pressure and heat.

Areas of Use:

Press-welded leaf strip connection bars are used in busbar systems. They are produced in S and V forms according to customer request.

SOM PRODUCT CODE	SECTION mm²	W Width	L1 Contact Size	L2 Contact Size	T Thickness	L Full Length
AG-PK-04005-230	200	40	40	40	5	230
AG-PK-04008-230	320	40	40	40	8	230
AG-PK-040010-230	400	40	40	40	10	230
AG-PK-040012-230	480	40	40	40	12	230
AG-PK-040015-230	600	40	40	40	15	230
AG-PK-040020-230	800	40	40	40	20	230
AG-PK-05005-250	250	50	50	50	5	250
AG-PK-05008-250	400	50	50	50	8	250
AG-PK-05010-250	500	50	50	50	10	250
AG-PK-05012-250	600	50	50	50	12	250
AG-PK-05015-250	750	50	50	50	15	250
AG-PK-05020-250	1000	50	50	50	20	250
AG-PK-06005-270	300	60	60	60	5	270
AG-PK-06008-270	480	60	60	60	8	270
AG-PK-06010-270	600	60	60	60	10	270
AG-PK-06012-270	750	60	60	60	12	270
AG-PK-06015-270	900	60	60	60	15	270
AG-PK-06020-270	1200	60	60	60	20	270
AG-PK-08005-310	400	80	80	80	5	310
AG-PK-08008-310	640	80	80	80	8	310
AG-PK-08010-310	800	80	80	80	10	310
AG-PK-08012-310	960	80	80	80	12	310
AG-PK-08015-310	1200	80	80	80	15	310
AG-PK-08020-310	1600	80	80	80	20	310
AG-PK-10005-350	500	100	100	100	5	350
AG-PK-10008-350	800	100	100	100	8	350
AG-PK-10010-350	1000	100	100	100	10	350
AG-PK-10012-350	1200	100	100	100	12	350
AG-PK-10015-350	1500	100	100	100	15	350
AG-PK-10020-350	2000	100	100	100	20	350
AG-PK-10025-350	2500	100	100	100	25	350
AG-PK-12005-390	600	120	120	120	5	390
AG-PK-12008-390	960	120	120	120	8	390
AG-PK-12010-390	1200	120	120	120	10	390
AG-PK-12012-390	1440	120	120	120	12	390
AG-PK-12015-390	1800	120	120	120	15	390
AG-PK-12020-390	2400	120	120	120	20	390
AG-PK-12025-390	3000	120	120	120	25	390
