High Flexibility Round Stranded Copper Wires

Home Page High Flexibility Round Stranded Copper Wires

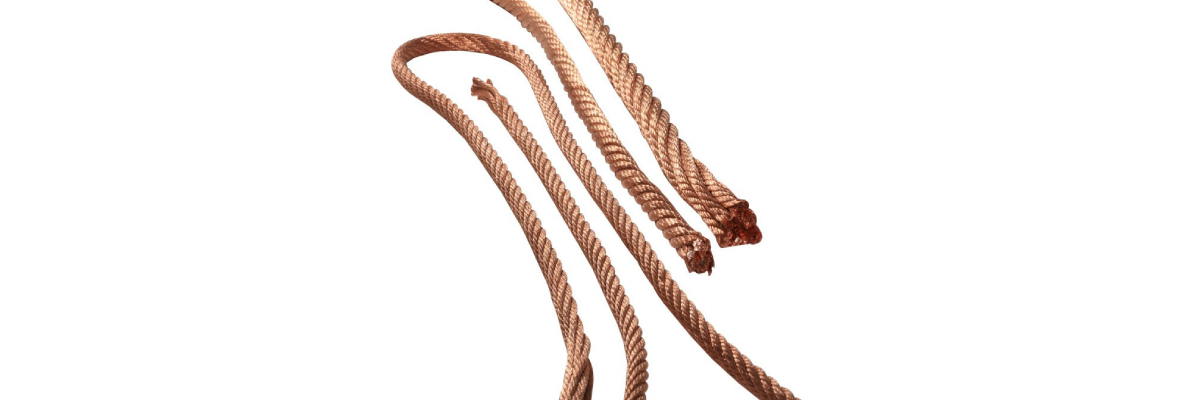

High Flexibility Round Stranded Copper Wires
Product Structure

*Round stranded copper wires are produced from Cu-ETP1 wires with a diameter of 0.05 - 0.07 or 0.10 as 7 cores (between 1 mm² - 50 mm²) or 19 or 37 cores (between 70 mm² - 400 mm²) according to the desired cross-section. It can also be produced in sizes other than the standard table upon request.

Areas of Use:

Due to its thin wire structure, it is suitable for working environments that require flexibility and mobility.

TAVLI PRODUCT CODE TIN PRODUCT CODE SECTION WIRE DIAMETER
mm		 LAST DIAMETER
mm		 WEIGHT
AG-TDYO-0010 AG-KDYO-0010 1 512 x 0,05 1,5 1
AG-TDYO-0015 AG-KDYO-0015 1,5 392 x 0,07 1,9 1,7
AG-TDYO-0025 AG-KDYO-0025 2,5 651 x 0,07 2,4 2,7
AG-TDYO-0040 AG-KDYO-0040 4 1036 x 0,07 3,1 4
AG-TDYO-0060 AG-KDYO-0060 6 1561 x 0,07 4 6
AG-TDYO-0080 AG-KDYO-0080 8 2100 x 0,07 4,2 8
AG-TDYO-0100 AG-KDYO-0100 10 2604 x 0,07 4,5 10
AG-TDYO-0160 AG-KDYO-0160 16 4200 x 0,07 5,7 16
AG-TDYO-0250 AG-KDYO-0250 25 3192 x 0,10 7,5 25
AG-TDYO-0350 AG-KDYO-0350 35 4480 x 0,10 9 35
AG-TDYO-0500 AG-KDYO-0500 50 6383 x 0,10 11 50
AG-TDYO-0700 AG-KDYO-0700 70 8918 x 0,10 13 70
AG-TDYO-0950 AG-KDYO-0950 95 12100 x 0,10 15 100
AG-TDYO-1200 AG-KDYO-1200 120 15300 x 0,10 17 127
AG-TDYO-1500 AG-KDYO-1500 150 19152 x 0,10 19 158
AG-TDYO-1850 AG-KDYO-1850 185 23580 x 0,10 21 194
AG-TDYO-2400 AG-KDYO-2400 240 30600 x 0,10 23,5 247
AG-TDYO-3000 AG-KDYO-3000 300 38200 x 0,10 27,5 310
AG-TDYO-4000 AG-KDYO-4000 400 50960 x 0,10 33 410
AG-TDYO-5000 AG-KDYO-5000 500 64288 x 0,10 38 508
AG-TDYO-6000 AG-KDYO-6000 600 76832 x 0,10 43 600
AG-TDYO-7500 AG-KDYO-7500 750 95648 x 0,10 46 750
AG-TDYO-8500 AG-KDYO-8500 850 108976 x 0,10 48 850
AG-TDYO-1000 AG-KDYO-1000 1000 128576 x 0,10 54 1010
